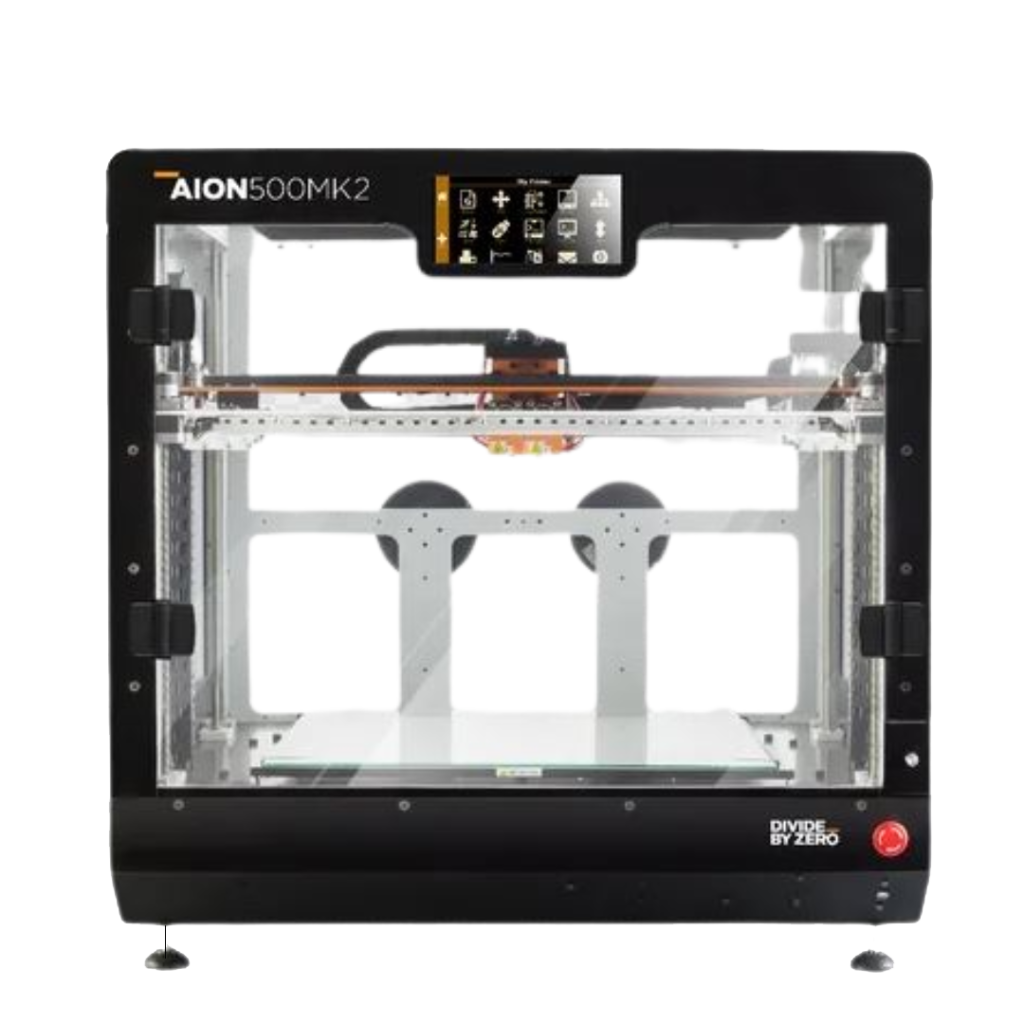

Aion 500 MK2

Redefining The Standards

Introducing – India’s FIRST IoT-enabled, industrial-grade professional 3D printer, now with ADVANCED SERVO MOSQUITO EXTRUDER AND ADVANCED FUSION PLASTIC MODELLING (AFPM) TECHNOLOGY
The game changing AION 500 is an IoT enabled, high performance, massive 3D printer which offers a professional-level build volume at an affordable price point.

Aion 500 MK2 Features

Collaborative

Machine can be accessible from web browser for up to 10 user accounts and can be accessed and controlled on a secure connection. Now, not only the operator but also the designers can keep an eye on the progress of their valuable in process 3D print.

Higher Productivity

High performance adaptive active liquid cooled extruder head that can print with multiple materials without changing any hardware for long hours at one go with industry’s best throughput

Motion on the Fly

With our years of experience in machine building we have developed unique X-Y motion system in AION 500 that moves Z axis as print is being build on stable build platforms. With this mechanism Aion 500 MK2 can print up to 30% faster without compromising on precision.

Safer Print

Active carbon filter continuously cleans air inside the machine chamber, providing safer work environment for users.

AFPM - The New Standard in 3D Printing

Our patented 3D printing firmware–hardware combination ensures adaptive flow & temperature changes in material deposition ensuring better Component strength.

Industry 4.0 Ready

Aion 500 MK2 is ready for industry 4.0. You can control Aion 500 using web browser on your LAN or VPN. The operator keeps an eye on the production process via live imaging, while necessary presence is reduced. This machine is also ready with interface for robot handshake in case of implementation of complete automatic print setup.

Fail-Safe Printing

Aion 500 MK2 comes with patented precision filament flow sensor that tracks consumption of the material flow through extruder & compares that with the consumption indicated in the G code. In case of clogging, the machine resolves the condition pro-actively by cleaning nozzle automatically

Advanced Slicing Software

Automatic pre-processing including slicing, automatic support generation, part packing and nesting computing part build time and material consumption. Sliced file can be directly sent to the cloud for printing.

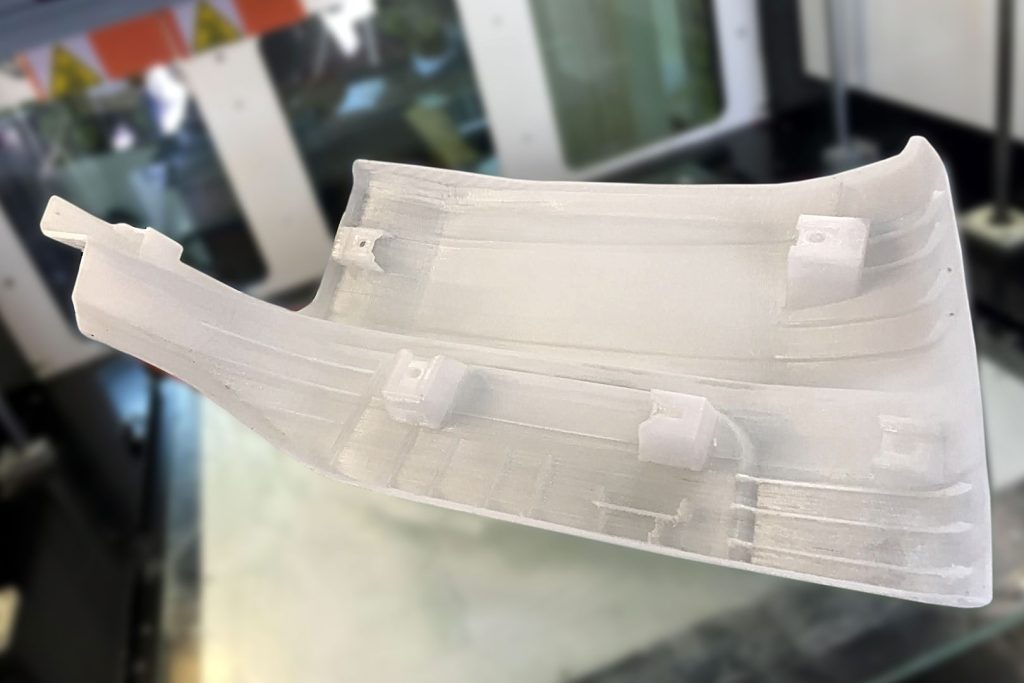

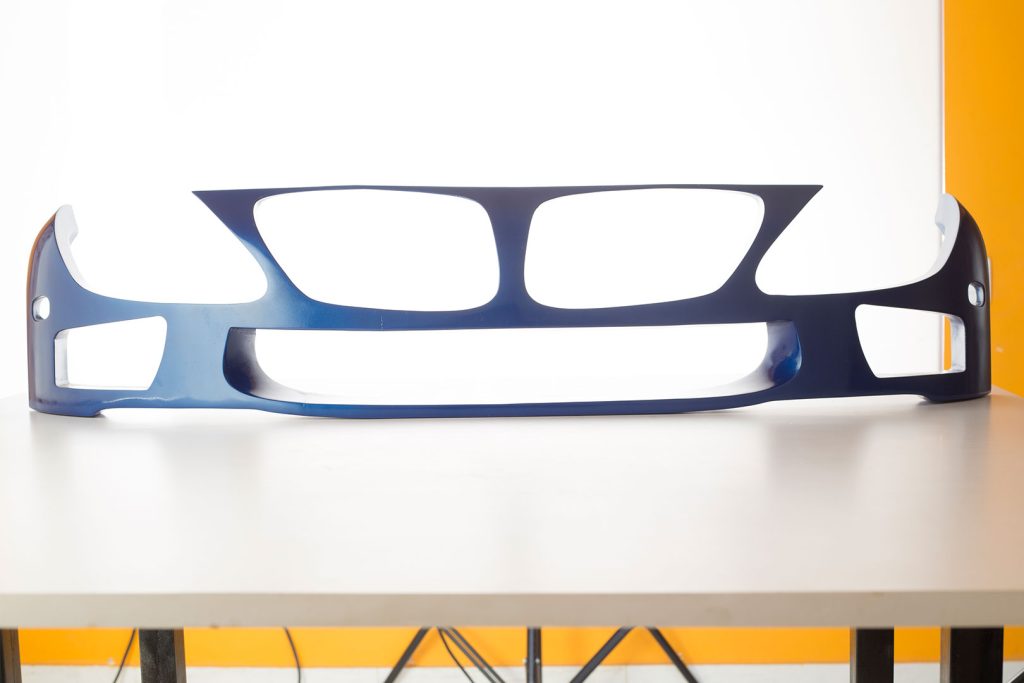

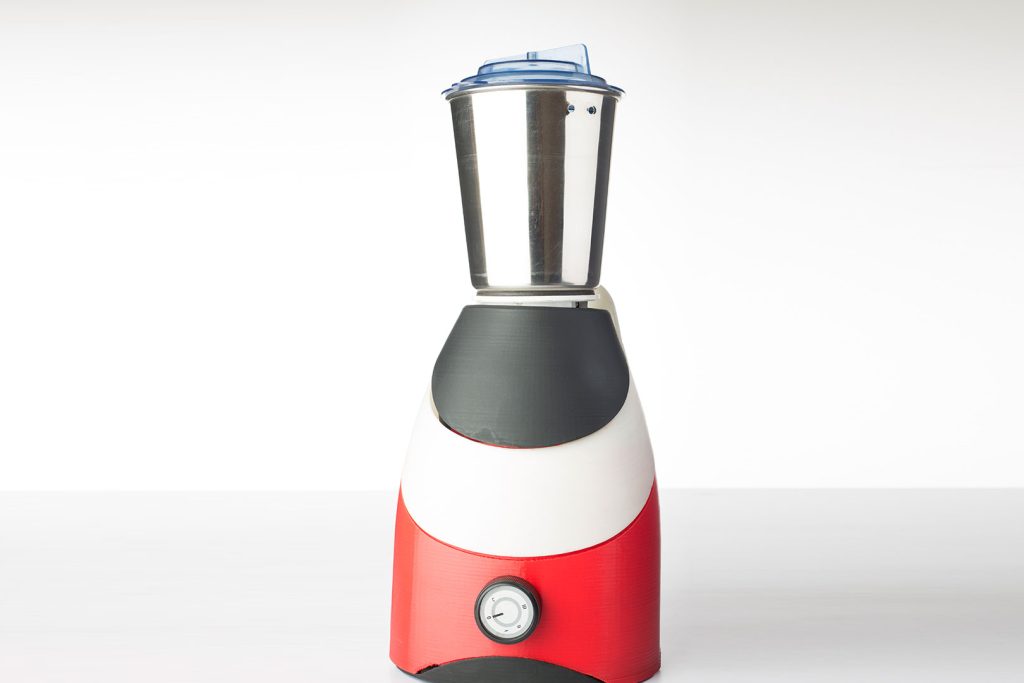

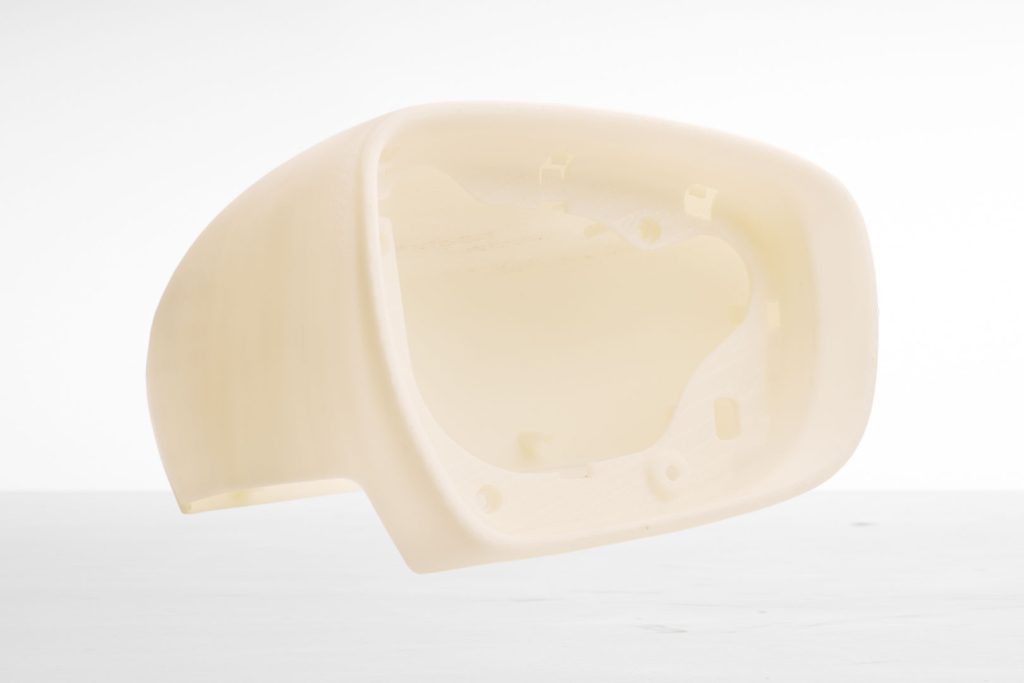

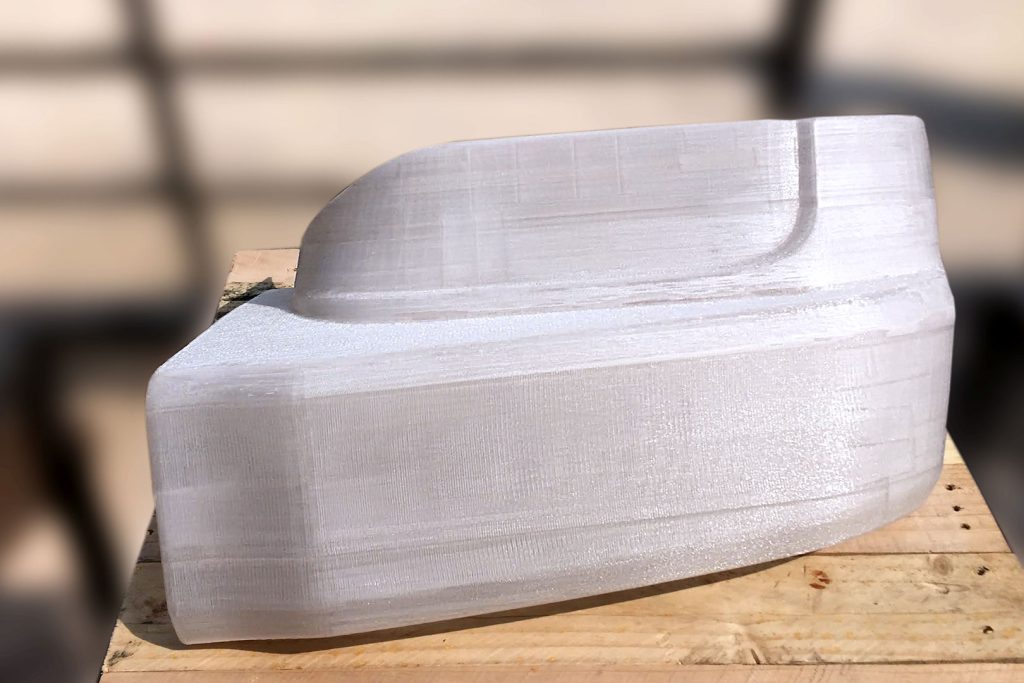

Industrial grade 3D printer - Aion 500 MK2 Product Output

The S5 works with 280+ materials including the following:

CF

Print Core

AA

Print Core

AA

Print Core

AA

Print Core

AA

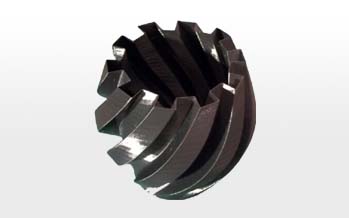

PC

Warpage Control

Surface Finishing

Heat Resistance @100◦C

After Print Accuracy

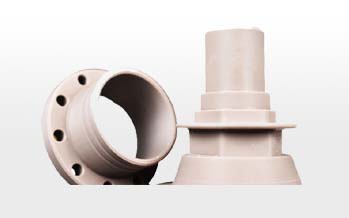

PC-ABS

Part Strength

Cost

Part Flexibility

Heat Resistance @100◦C

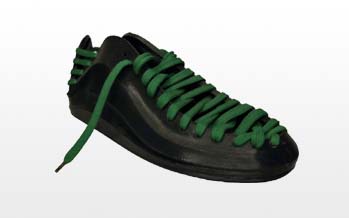

TPU

Part Flexibility

Surface Finishing

After Print Accuracy

Part Shrinkage Control-Small parts less than 100mm

PETG

Weather-proof

Good chemical

Heat resistance

High impact strength even at low temperature

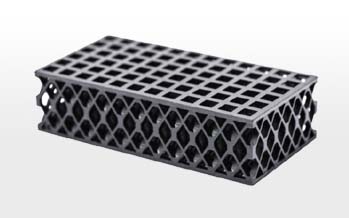

Polyrethane

Warpage Control

Surface Finishing

Heat Resistance @100◦C

After Print Accuracy

HIPS

Part Strength

Warpage Control

After Print Accuracy

Part Shrinkage Control-Small parts less than 100mm

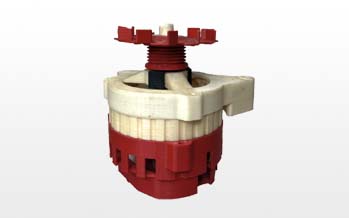

ABS

Surface Finishing

Cost

Support Removal Control

After Print Accuracy

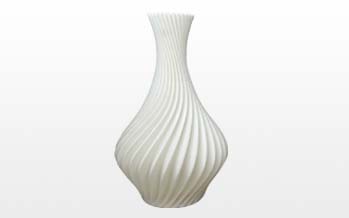

PLA

Warpage Control

Part Strength

Surface Finishing

Part Flexibility

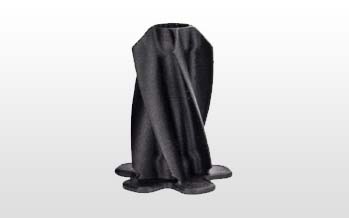

PAGF

Very High mechanical strength

Higher thermal resistance

Good electrical insulating properties

Low susceptibility to deformation

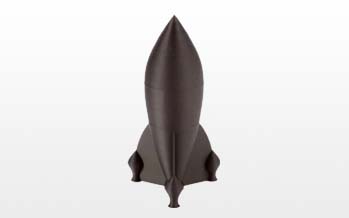

PLA-CF

Part Strength

Warpage Control

After Print Accuracy

Part Shrinkage Control-Small parts less than 100mm

Aion 500 MK2 specifications

Physical Dimensions

Filament- Diameter

1.75mm(0.06in)

Extruder- Diameter

0.6mm/0.5mm/0.4mm(0.019in/0.15)

Extruder- Temperature

400C

No. of Extruder

2

Model Of Extruders

Direct Drive all metal liquid cooled extruder

Recommended Materials

ABS, PLA, HIPS, PETG, Carbon fibre, AFPM special material, Polycarbonate, AFPM Carbon fibre

Material Support

Non hygroscopic HIPS

Maximum Print Speed

200mm/sec

Maximum Travel Speed

300mm/sec

Layer Precision

0.1-0.30 mm

Heated Bed

Yes

Bed Temperature

150C

LCD Support

Yes

Connectivity

USB, SD card, Wifi

Print Monitoring System

In build camera with Wi-Fi connectivity

Enclosure Type

Complete enclosed chasis, even spool is covered

Power Requirement

110-220VAC, 700 Watt PSU with 1 Year Warranty

Run Time Change Setting Option

Yes

Pause Print Option


Semi-automatic-Yes(pause and resume even after extruder movement)

XY Precision


Positional accuracy 16 micron using HIWIN High Precision Linear Guide Rails.

Noise Level


Less than 70db

Training


Covered under 3 days free onsite training.

Physical Dimensions

Maximum printable area

500mm*500mm*500mm

Total Machine Weight

250Kg

Software

Software Supported

Repetier, Cura, Custom Software for DBZ, Kislicer

Warranty

Warranty

1 year

Compare

Accucraft i250+

More space for bigger 3D prints with the widest choice of materials.

Aeqon 400 V4

More space for bigger 3D prints with the widest choice of materials.

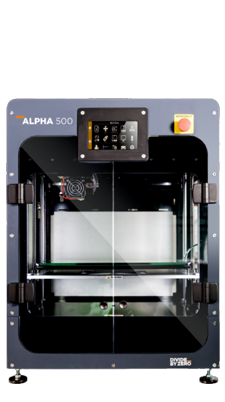

Alpha 500

More space for bigger 3D prints with the widest choice of materials.

AION 500 MK2

More space for bigger 3D prints with the widest choice of materials.

Aion NX

More space for bigger 3D prints with the widest choice of materials.

Bed Size
300mmx250mmx200mm
Bed Size
400mmx300mmx300mm
Bed Size
500mmx500mmx500mm
Bed Size
500mmx500mmx500mm
Bed Size
1000mm*1000mm*1000mm
Extruder Temperature
upto 270C
Extruder Temperature
upto 300C
Extruder Temperature
upto 300C
Extruder Temperature
upto 450C
Extruder Temperature
upto 450C
Model Of Extruders
Accucraft Standerd Extruders
Model Of Extruders
Aeqon Standerd Extruders
Model Of Extruders
Single Direct Drive All metal extruder
Model Of Extruders
Dual Drive Liquied Cool Extruder
Model Of Extruders
Dual Drive Liquied Cool Extruder
Recommended Materials
PLA,ABS, PET,TPU etc
Recommended Materials
PLA,ABS,HIPS,PC,,PET,TPU , Nylon, CF etc
Recommended Materials
PLA, ABS, PETG,TPU, CF
Recommended Materials
ABS, PLA, HIPS, PET, PC-ABS,PC,TPU,AFPM Special,Nylon,AFPM Carbon Fibre, ASA, ABS+
Recommended Materials
PLA,ABS, PET,TPU etc
Clog Detection Filament Sensor
X
Clog Detection Filament Sensor
Clog Detection Filament Sensor
Clog Detection Filament Sensor
Clog Detection Filament Sensor
Leveling Mode
Manual
Leveling Mode
Automatic
Leveling Mode
Automatic
Leveling Mode
Automatic
Leveling Mode
Automatic
Active Carbon Filter
X
Active Carbon Filter
X
Active Carbon Filter
X
Active Carbon Filter
Active Carbon Filter
Liquid Cooling
X
Liquid Cooling
X
Liquid Cooling
X
Liquid Cooling
Liquid Cooling
